2pc lokcable ball valve |
| Full port |
W. P.: 1/4"~1"-2000 WOG(PN150), |
| 1-1/4"~2"-1500WOG(PN100), |
| 2-1/2"~4"-1000WOG(PN63) |
| W. T.:-20¡æ ~200¡æ (-4¨H~392¨H) |
| Investment casting |
| Blow-out proof stem |
Anti-static device (option)
Locking device |
| Length conform to DIN 3202/4-M3 - 2006M3(option) |
| Thread type: ASME B1.20.1 (NPT), DIN 2999 & BS21, ISO 7/1 & EN10226 |
| |
| |
| |
|
|
|
 |
| |

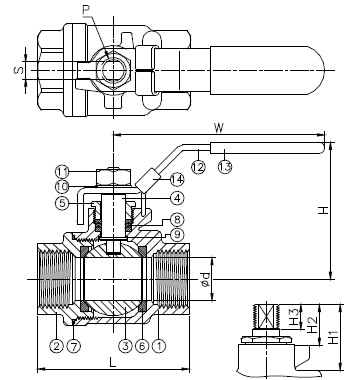

ITEM |
PARTS |
MATERIAL |
1 |
Body |
ASTM A351-CF8M
ASTM A261-WCB |
2 |
CAP |
3 |
Ball |
ASTM A351- CF8M |
4 |
Stem |
ASTM A276-361 |
5 |
Gland NUT |
AISI 304 |
6 |
Seat |
PTFE / RTFE / TFM 1600 |
7 |
Seat |
PTFE / TFM 1600 |
8 |
Packing |
PTFE / RTFE / TFM 1600 |
9 |
Thrust washer |
PTFE |
10 |
Thrust washer |
AISI 304 |
11 |
NUT |
12 |
Handle |
STAINLESS STEEL |
13 |
Handle Sleeve |
PVC |
14 |
Locking device |
STAINLESS STEEL |
|
| |
|
|
|
|
|
